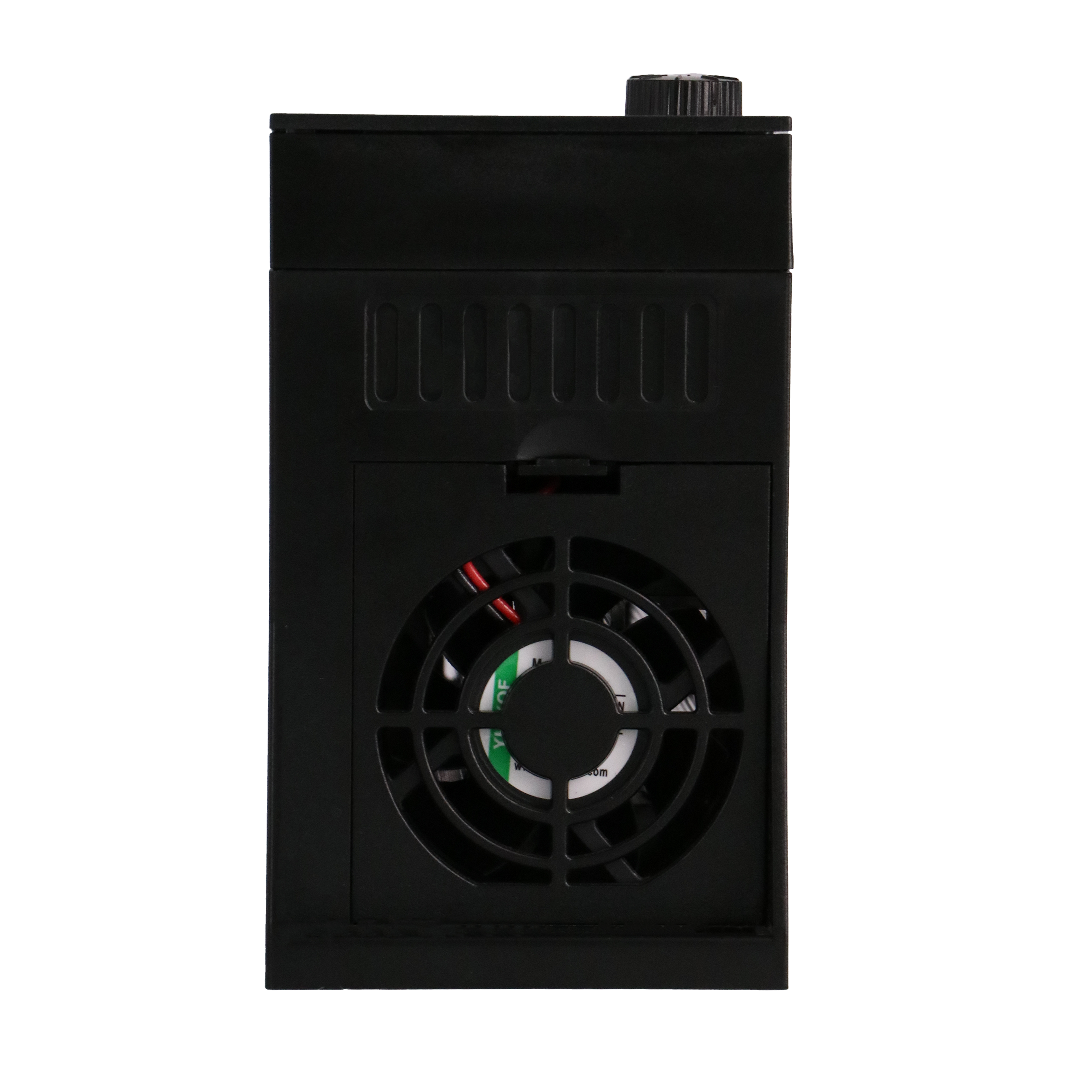

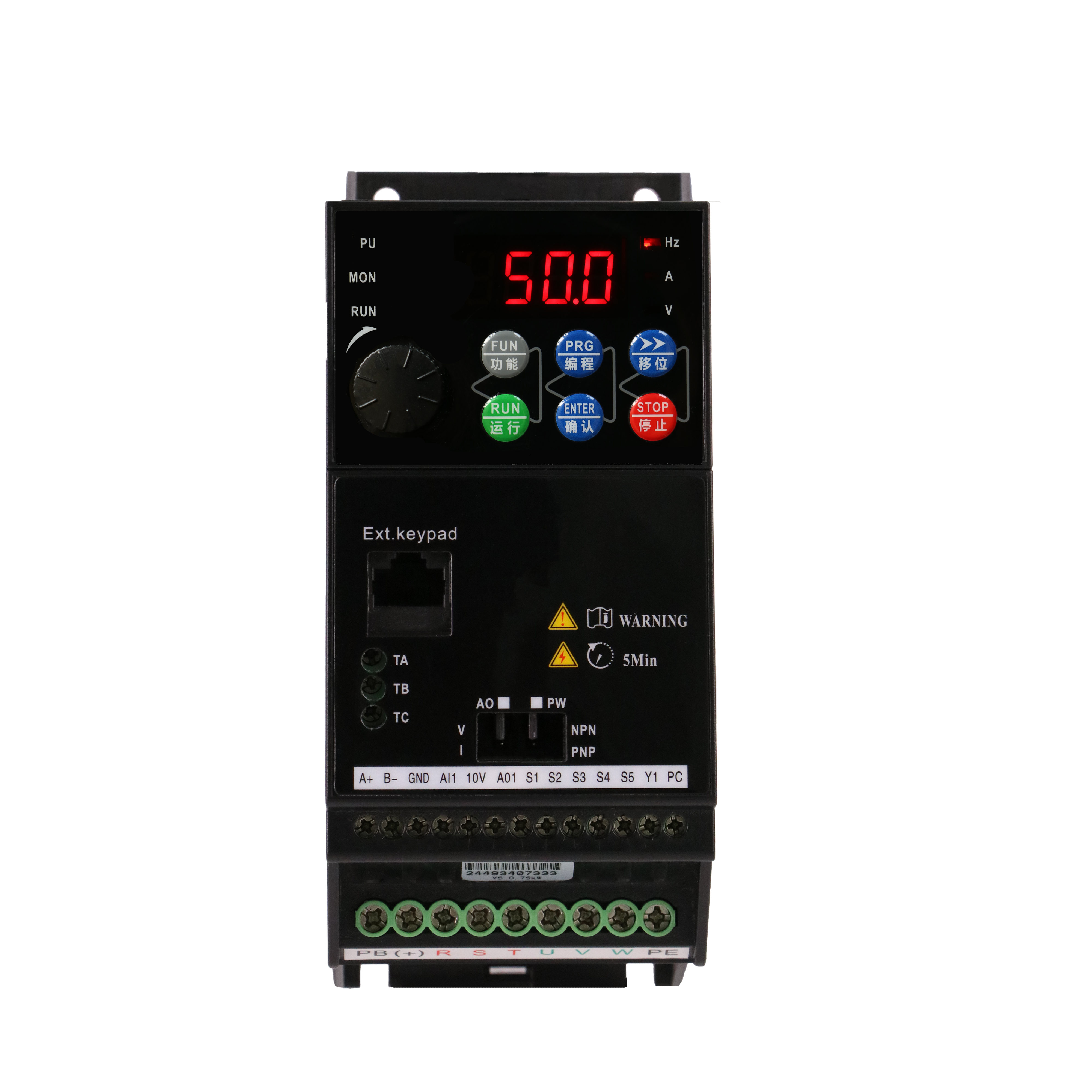

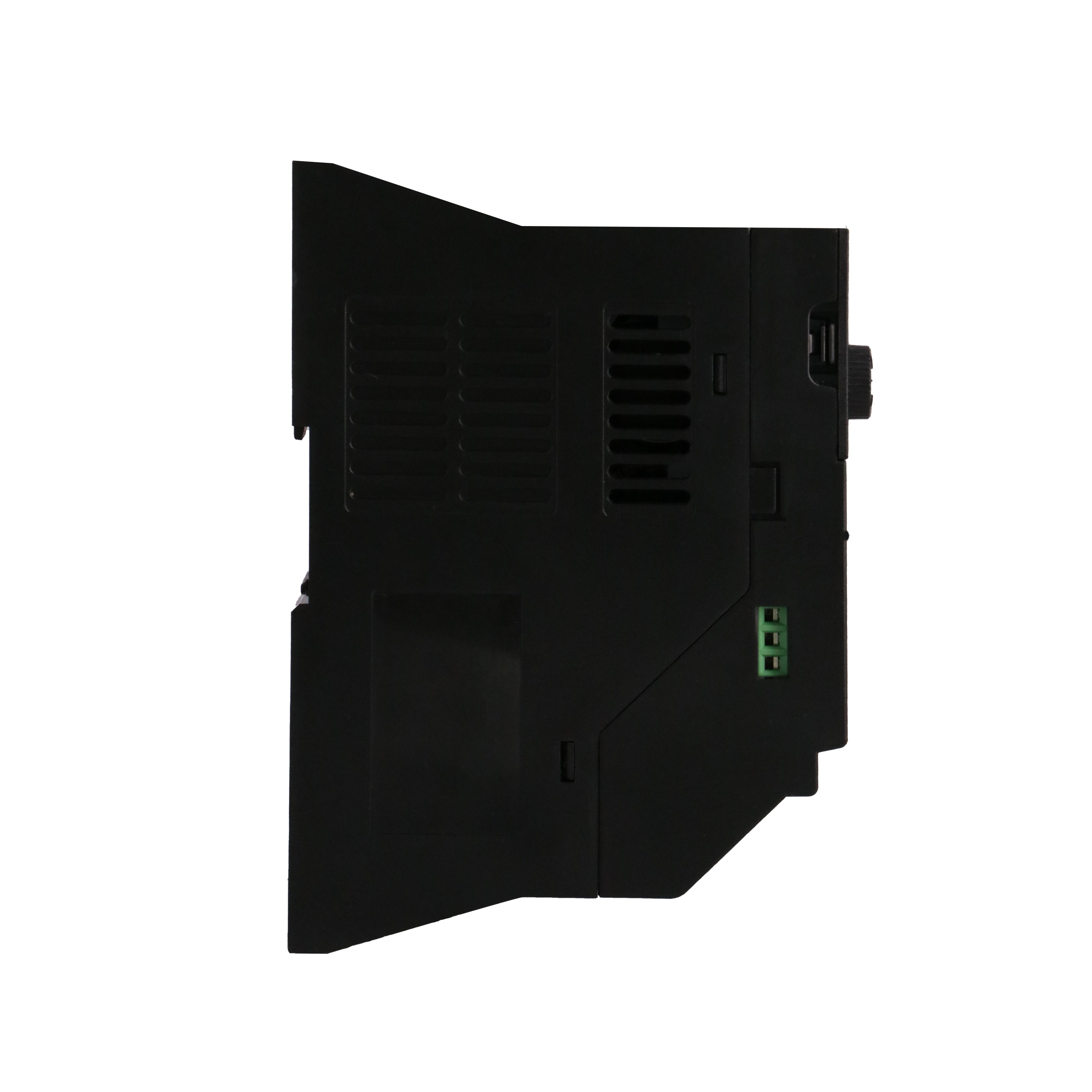

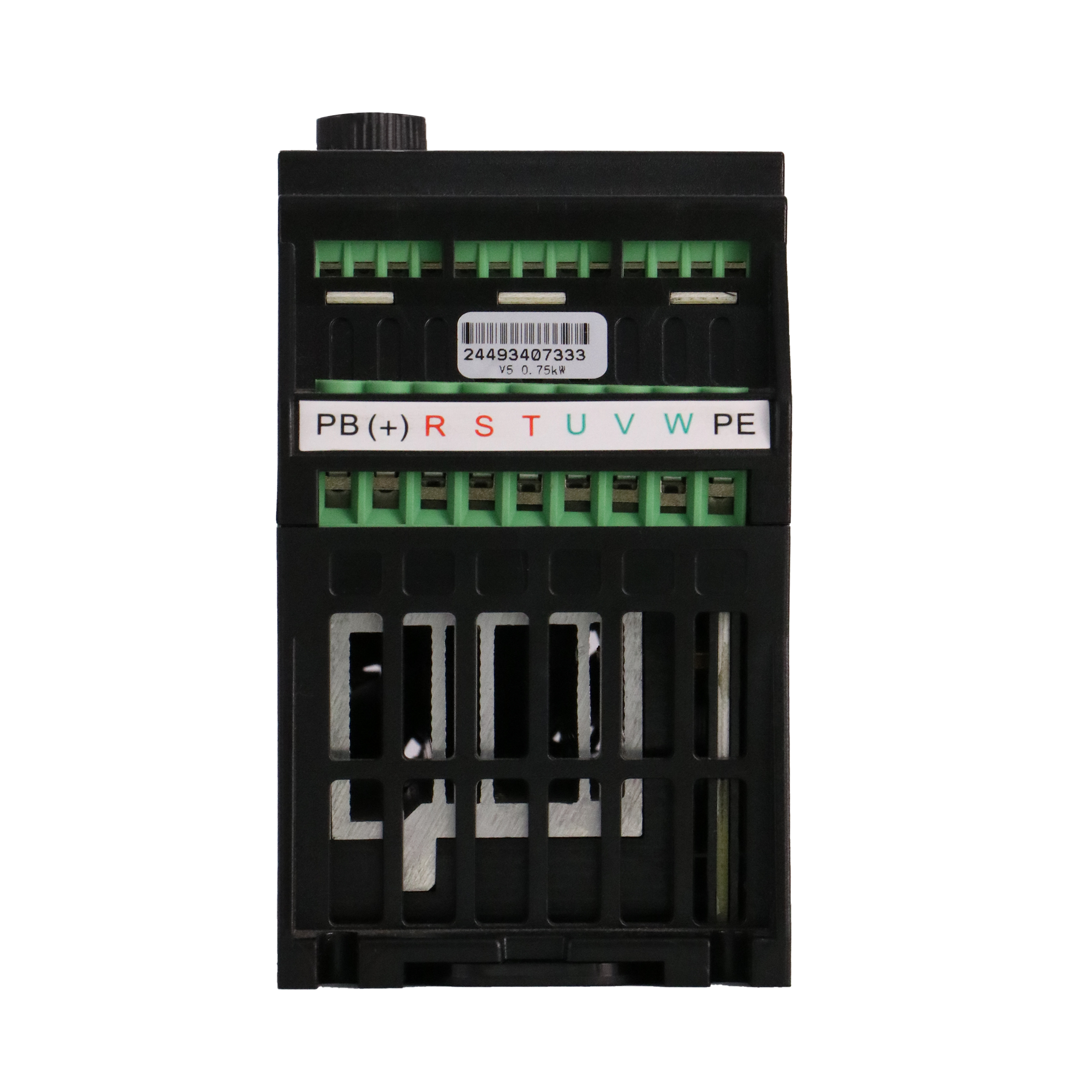

V5 Universal [0.75 kw-2.2kw]
V5 Universal [0.75 kw-2.2kw]
V5 universal frequency converter
| classification | Specific parameter items | Details |
|---|---|---|
| Input | input voltage | 200V (-10%) - 240V (+ 10%) single phase/three phase; 380V (-10%) - 480V (+ 10%) three phase |
| Input power frequency | 48 - 62Hz | |
| Output | control mode | VF control |
| control frequency | 0 - 300Hz | |
| frequency resolution | 0.1Hz | |
| output voltage | 0-Input voltage | |
| carrier frequency | 1 - 10KHz | |
| Speed range | 1:50 | |
| Overload Capacity | 150% rated current for 1 minute | |
| Control Features | torque boost | 0.0-30.0 percent |
| acceleration and deceleration time | 0.0 ~ 6553.5s(m) | |
| VF curve | 0: multi-point V/F curve; 1:2.0 power curve; 2:1.7 power curve; 3:1.2 power curve | |
| inching control | inching frequency range: 0.00 Hz-5.00Hz; Inching acceleration and deceleration time: 0.0 s-600.0s | |
| DC brake | DC braking frequency: 0.00Hz-maximum frequency; Braking time: 0.0 s-60.0s; Braking action current value: 0.0-100.0% | |
| energy consumption braking | built-in brake unit; Energy consumption braking rate: 0.0-100.0% | |
| Advanced Features | Built-in PID | can realize process control closed-loop system, such as constant pressure, constant temperature control, etc. |
| built-in multi-speed and simple PLC | Through the built-in PLC or control terminal to achieve up to 16 speed operation | |
| Built-in 4 groups of acceleration and deceleration time | can be segmented to select the acceleration and deceleration time | |
| protection function | Overheat, overload, overcurrent, overvoltage, overcurrent stall, overvoltage stall, output short circuit, etc. | |
| pendulum frequency control | is suitable for the textile industry to achieve pendulum frequency control | |
| fixed length control | Length Given Control | |
| frequency given source | panel digital given, analog given, communication given, PID given, etc. | |
| command source given | Panel operation, terminal operation and communication operation | |
| fieldbus communication | RS485 interface, compatible with MODBUS-RTU format | |
| Conditions of use | use place | Indoor is not exposed to direct sunlight, no dust, corrosive gas, flammable gas, oil mist, dripping water or salt, etc. |
| altitude | less than 1000m | |
| ambient temperature | -10 ℃ - +40 ℃ (please derate for 40 ℃ - 50 ℃) | |
| Humidity | less than 95% RH, no beads condensation | |
| vibration | less than 5.9m/s²(0.6g) | |
| Storage Temperature | -20 ℃ - +60 ℃ | |
| IP Level | IP20 | |
| pollution level | PD2 | |
| distribution system | TN,TT |
v5 series transformer, this inverter is adapted to wide voltage input (200-240V single/three-phase, 380-480V three-phase), precise control (0-300Hz frequency adjustable, resolution 0.1Hz), speed regulation range up to 1:50. Support 16 speed, 4 groups of acceleration and deceleration time and swing frequency, fixed length control, built-in PID and simple PLC, easy to achieve constant pressure and constant temperature and other closed-loop control. With comprehensive protection function, compatibl
