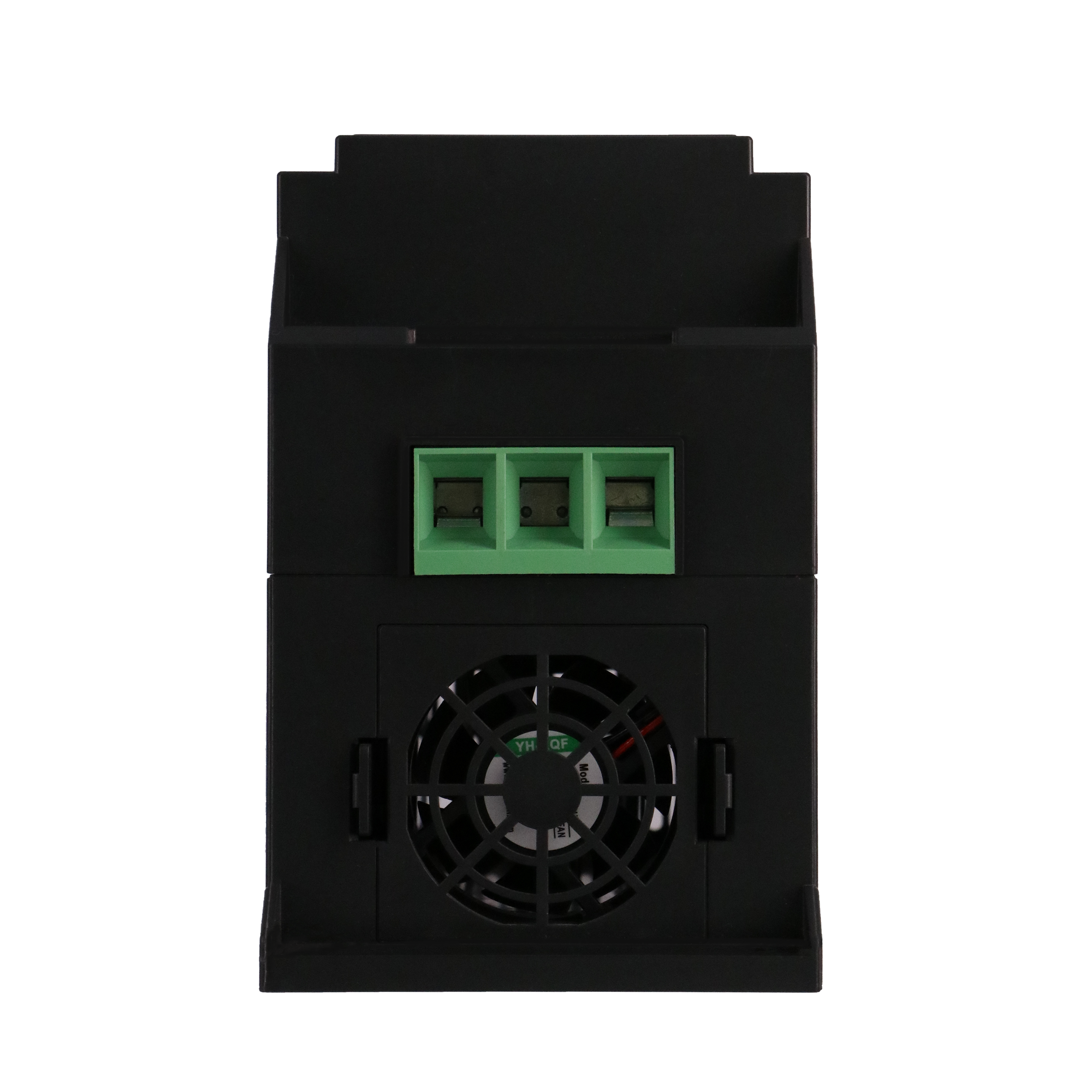

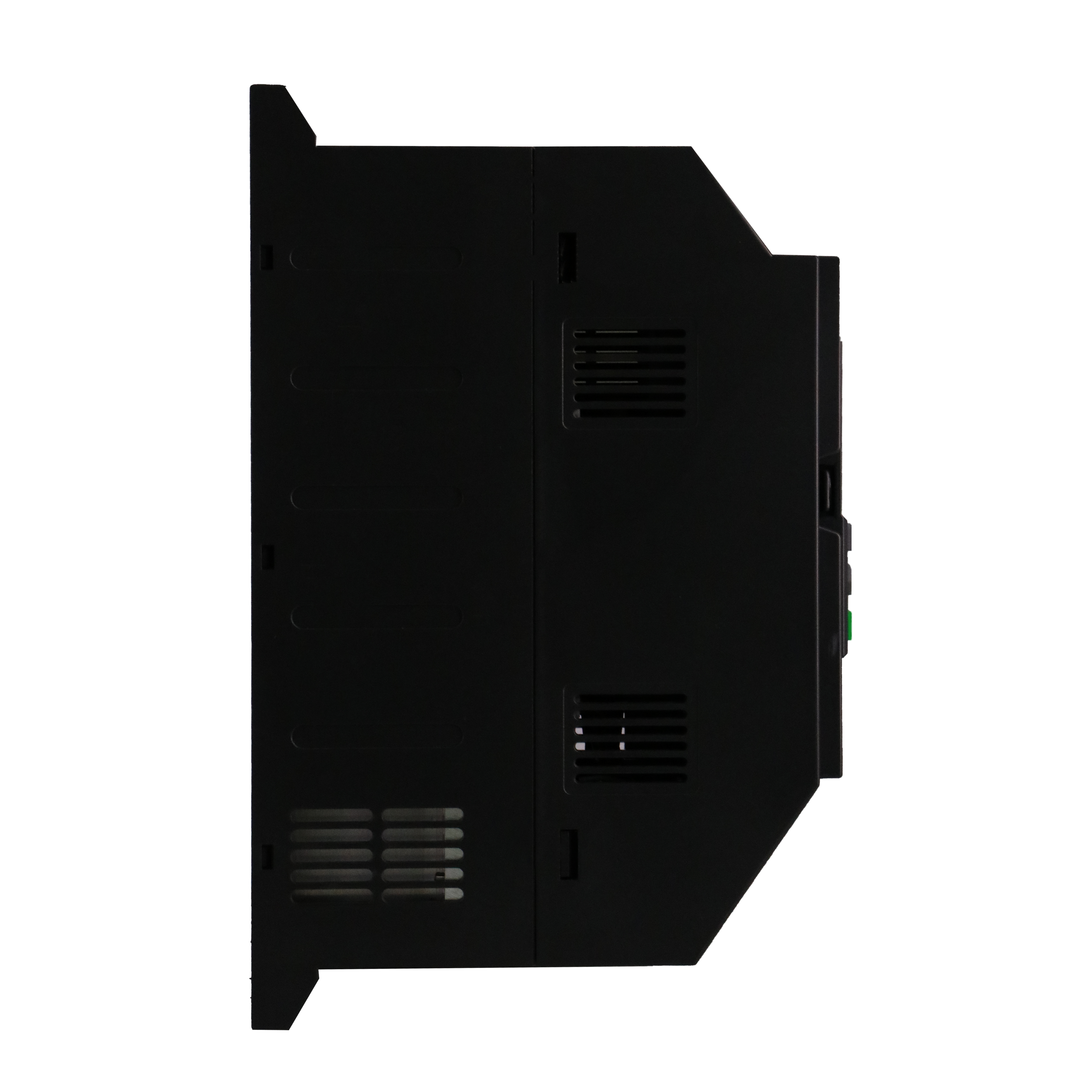

Z7 series intelligent online soft start [15kw-30kw]]
Z7 soft starter
| classification | Specific parameter items | Details |
|---|---|---|
| Function List | optional soft start curve | voltage ramp start; voltage ramp kick start; current limit start |
| Optional Soft Stop Curves | Free parking; Soft parking | |
| Extended Input and Output Options | remote control input; relay output; analog output; switch input and output; RS485 communication; motor temperature detection | |

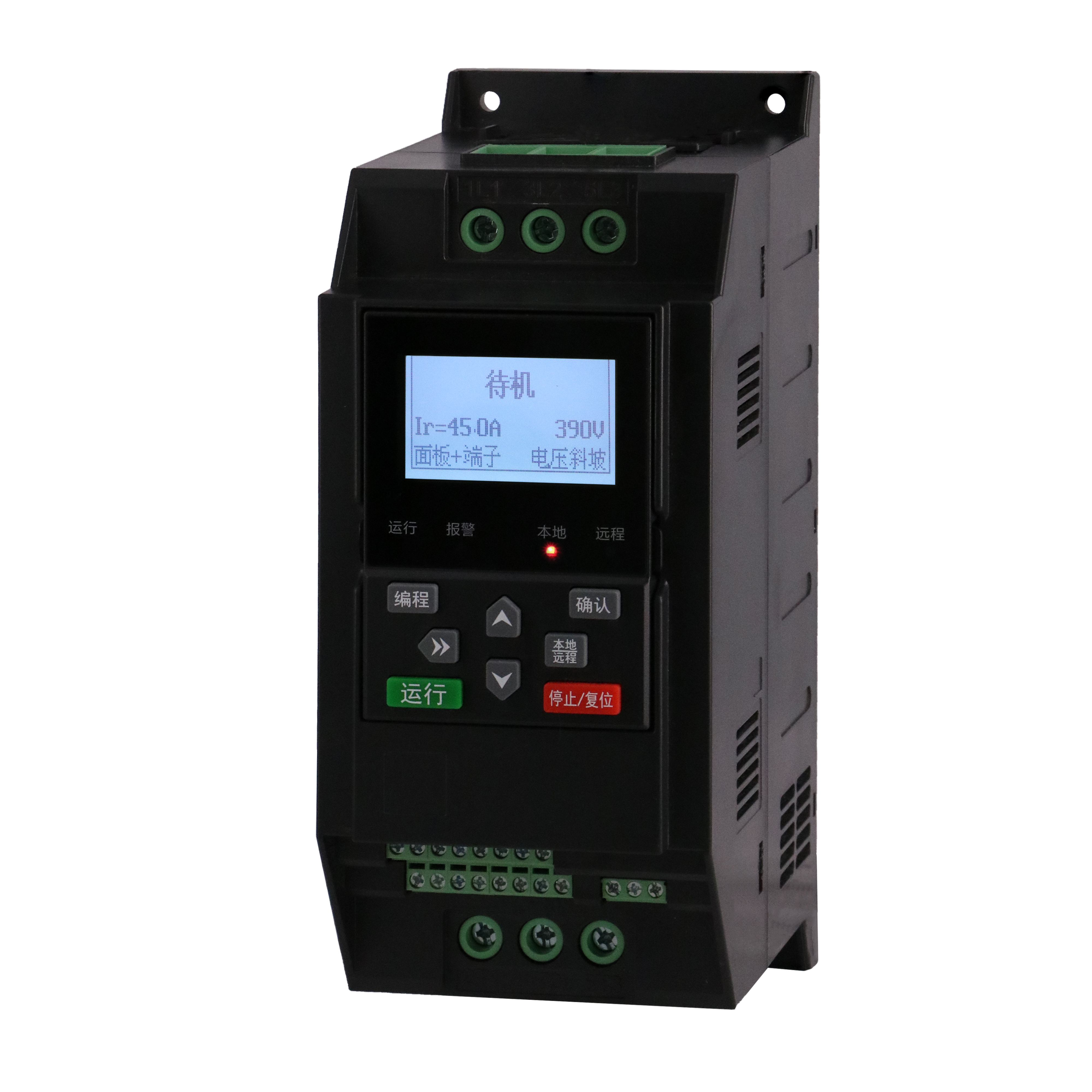

| Convenient based display | detachable operation panel; built-in Chinese and English display | |
| soft start external terminal description | soft starter terminal wiring diagram | Including three-phase AC power input, relay normally open output, analog output, RS485 and other terminal wiring |
| Soft Starter Secondary Terminal Row Sequence Diagram | Clarify the sequence and functions of TA1, TC1 and other terminals, such as relay normally open output, analog output, etc. | |
| Terminal Start-Stop Description | includes two-mode, two-line type 2, normally closed three-line type, normally open three-line type and other control modes, indicating the start-stop logic corresponding to X1 and X2 closing/opening | |
| Customizable Protection | protection function | Input phase loss, output phase loss, soft start overheating, phase sequence reversal, operating overload, operating overcurrent, operating overvoltage, overvoltage, undervoltage, underload |
| models to meet connection requirements | Models and Connections | 13A-2390A (nominal); 220VAC-380VAC; star connection |
| Conditions of use | Conditions of use | power supply: utility power, self-contained power station and other three-phase AC 220V, 380V,30Hz to 70Hz, capacity to meet the starting requirements; Applicable motor: squirrel cage three-phase asynchronous motor, power matching; Starting frequency: no requirement, depending on load; Cooling mode: forced air cooling; Protection grade: IP20; Environmental conditions: below 2000 meters above sea level, products can be customized under special conditions |
Product overview
This soft starter is an advanced digital soft start solution for motors from 5.5kW to 1000kW. Provides a complete set of motor and system protection functions to ensure reliable performance even in the harshest installation environments.
